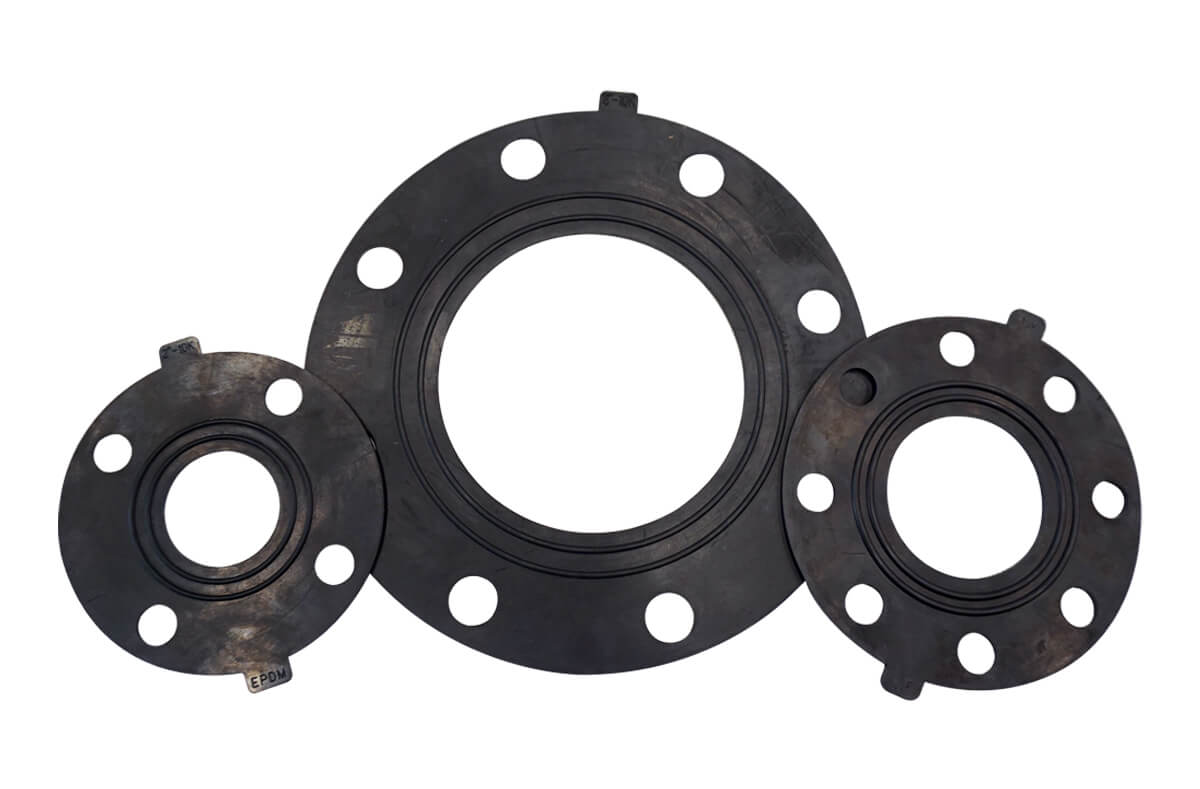

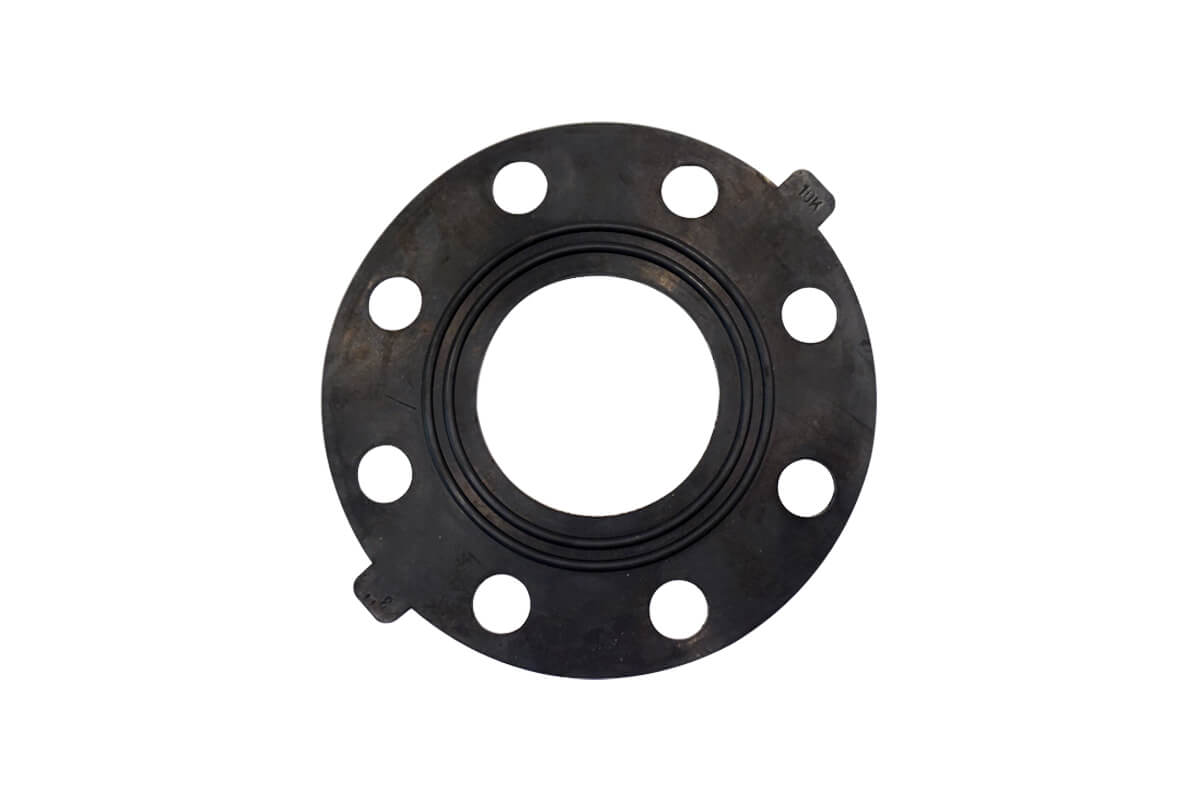

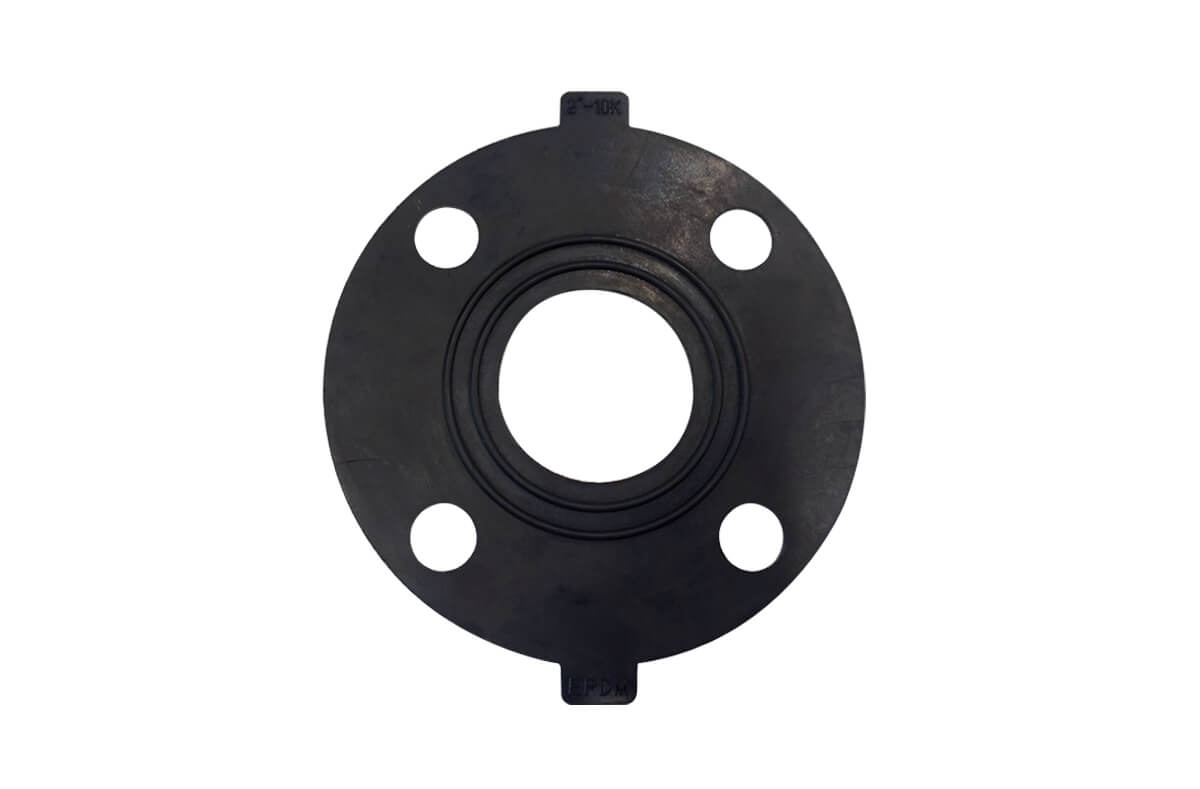

RUBBER GASKET

Applocations:

  • Rubber gaskets are water-proof, shock-proof and electric conductive
  • Flange gaskets specification: JIS10K, ANSI Class 150
Specifications
Model No Rubber Gasket
Size 1/2" to 14" (IPS), 1/2" to 3/4" (CIS)
Standard ANSI, JIS, DIN
Material EPDM, NBR, FPM
SIZE D1 D2 D3 D4 d1 n-e
15mm(1/2") 26 41 70 93 18 4-15
20mm(3/4") 32 47 75 98 22 4-15
25mm(1") 38 53 90 123 30 4-19
30mm(1-1/4") 50 65 100 133 37 4-19
40mm(1-1/2") 54 69 105 138 43 4-19
50mm(2") 68 83 120 153 54 4-19
65mm(2-1/2") 86 101 140 173 69 4-19
80mm(3") 98 112 150 183 80 8-19
100mm(4") 120 138 175 208 102 8-19
125mm(5") 145 166 210 248 127 8-23
150mm(6") 168 190 240 278 150 8-23
200mm(6") 216 247 290 328 198 12-23
250mm(10") 270 306 355 398 249 12-25
300mm(12") 324 352 400 443 300 16-25
350mm(14") 368 395 442 486 349 -
