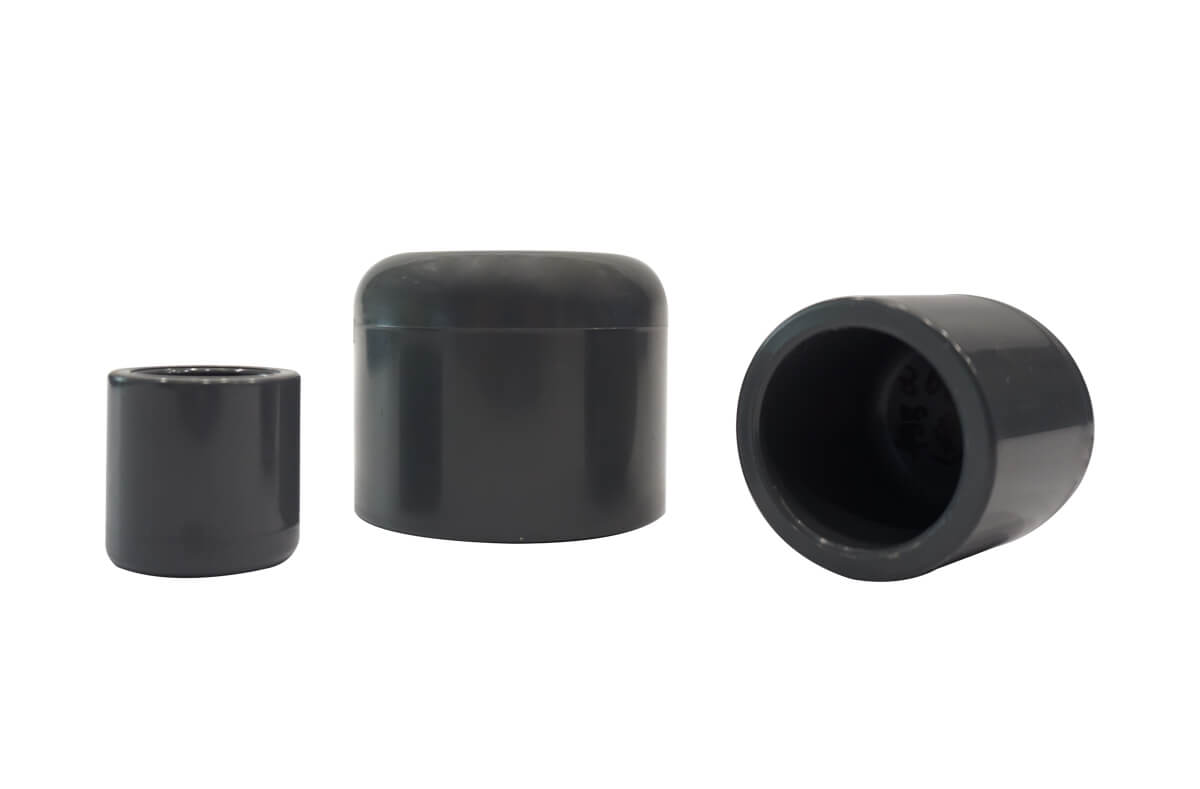

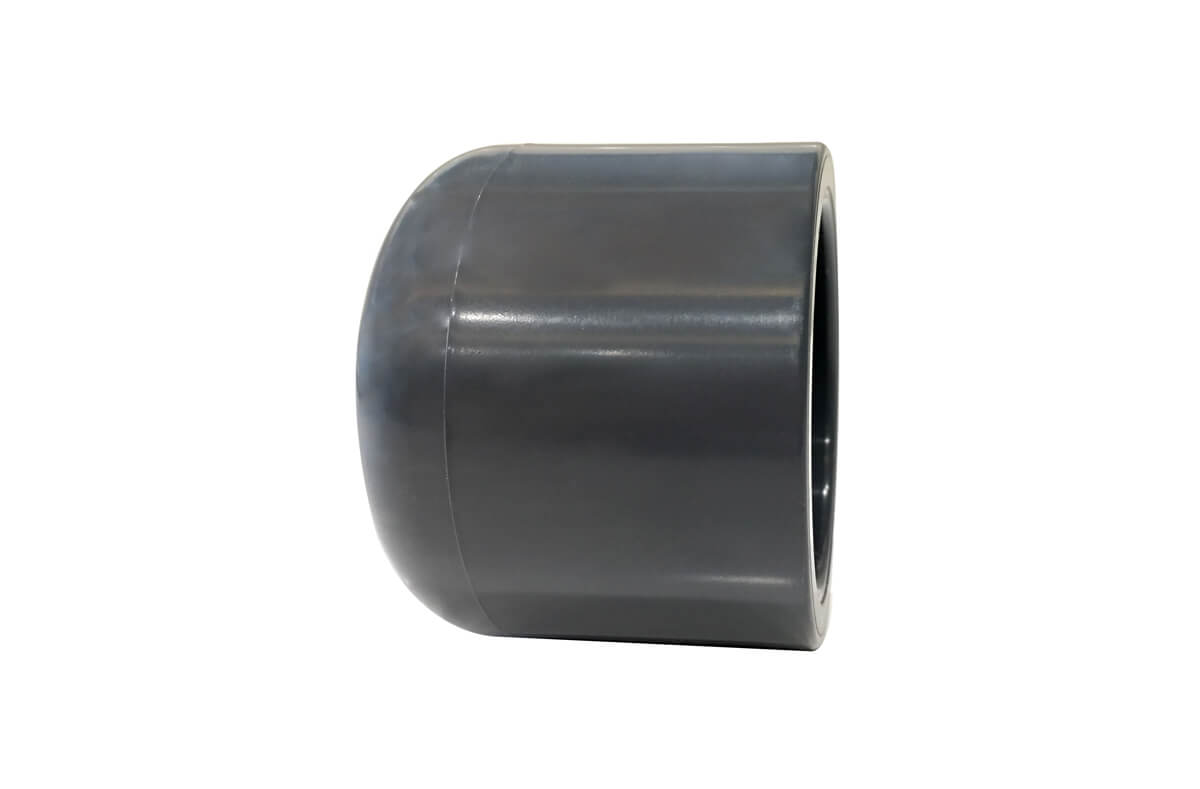

CAP

Applocations:

  • Cap is applied to typical applications including industrial construction system
  • Pure water system, sewerage and waste piping system, and drainage system of general use
  • KDJ products are suitable for acid-resistant and alkali-resistant industry construction system, pure water system, and drainage system of general use (fishery irrigation, agricultural irrigation and air conditioning system etc.)
Specifications
Model No Cap
Size 1/2" to 12"
Standard JIS series
Material PVC
End type Socket
Part e H
13 (3/8") 26 29
16 (1/2") 30 34.5
20 (3/4") 35 39.5
25 (1"W) 40 44
28 (1") 40 45
30 (1 1/4"W) 44 48
35 (1 1/4") 44 49
40 (1 1/2") 55 59.5
50 (2") 63 68
65 (2 1/2") 69 100
80 (3") 72 107
90 (3 1/2") 80 120
100 (4") 92 138
125 (5") 112 168
150 (6") 140 205
200 (8") 172 260
250 (10") 187 252
300 (12") 258 261
